801853

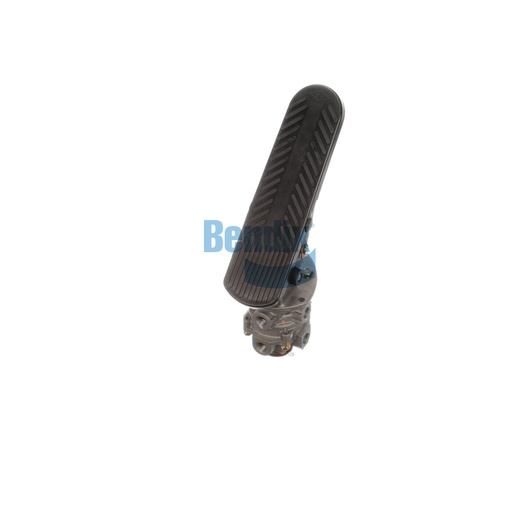

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a vital component that enhances the responsiveness of your truck’s braking system. Designed for durability and reliability, this foot-operated valve features a pedal made from sturdy steel, ensuring that it withstands the rigors of daily use while providing maximum control. The valve is equipped with an axial and perpendicular port configuration, allowing for efficient air delivery and quick response times during braking. With a total pedal travel of 24 degrees and an initial pedal angle of 45 degrees, it ensures that drivers can apply brakes smoothly and effectively. This valve is an essential part for maintaining safety and performance in commercial vehicles, allowing for reliable braking in various conditions. When it comes to sourcing quality components, Source One Parts Center is your trusted partner for genuine Bendix OEM parts, offering you peace of mind and superior performance for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Width
114.8 mm (4.52 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
206.8 mm (8.14 in)
Total Pedal Travel
24°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
339.6 mm (13.37 in)
Initial Pedal Angle
45°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
6 lb
