$134.95
$161.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

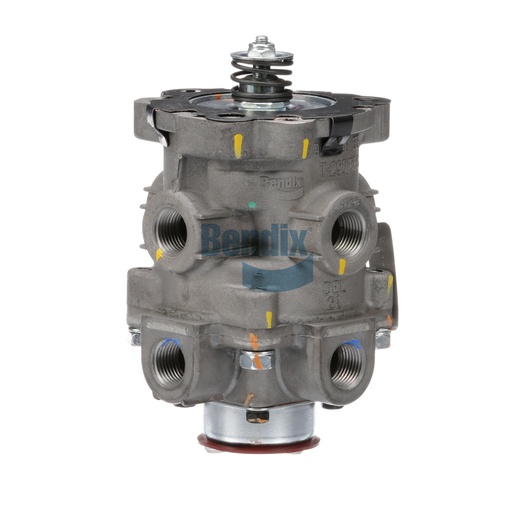

Optimize your vehicle's braking system with the Bendix Foot Brake Valve, a key component designed to ensure smooth and efficient braking operations. This valve is engineered to handle the demands of heavy-duty applications, featuring advanced technology that provides precise control over air pressure and delivery. With a robust design that includes multiple ports for efficient air distribution, this valve guarantees quick response times and enhanced safety while driving. Its compatibility with various commercial vehicle models makes it a versatile addition to any fleet. Weighing just 1.1 kg, the valve is easy to install and maintain, providing a practical solution for truck operators. When looking for genuine Bendix OEM parts, Source One Parts Center offers the best selection, ensuring you receive reliable components that meet your performance needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
221 °F (105 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Differential Pressure
5.5 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.47 lb
