802917

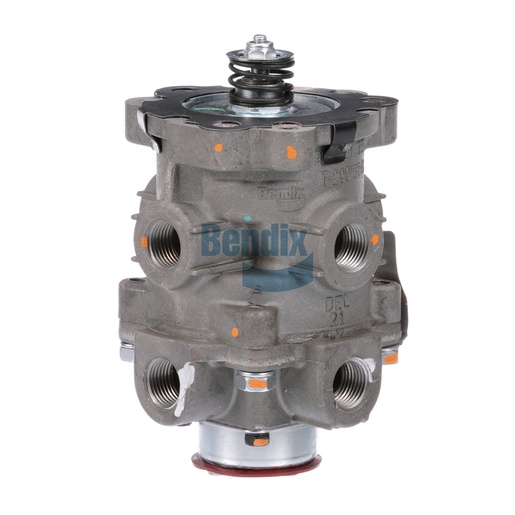

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a critical component designed for foot-operated braking systems in commercial vehicles. This valve provides precise control over the air brake system, ensuring that the driver can apply the brakes smoothly and efficiently. With a robust design that can withstand operating temperatures from -40°F to 221°F, this valve is built for reliability in demanding environments. Its compact size allows for easy installation and maintenance, making it an excellent choice for fleet operators looking to minimize downtime. The Bendix Foot Brake Valve enhances overall braking performance and safety, providing drivers with the confidence they need on the road. When sourcing high-quality brake components, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive top-notch reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
221 °F (105 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.38 lb
