K025052

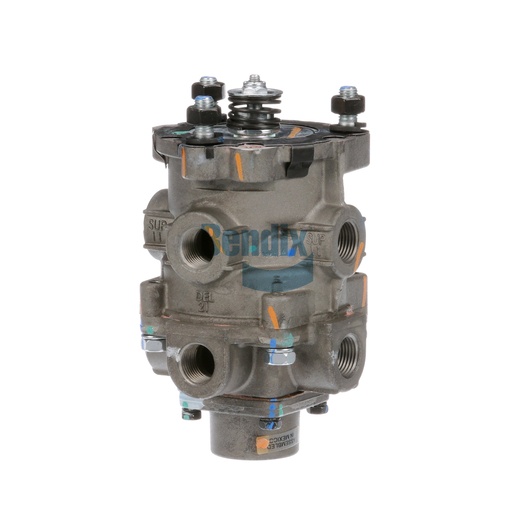

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Maximize the efficiency of your braking system with the Bendix foot brake valve, designed for foot-operated products in commercial vehicles. This valve ensures precise control over your braking system, allowing for smooth and responsive stops under various driving conditions. With a robust construction that meets industry standards, it is built to withstand the rigors of heavy-duty use while providing reliable performance. Weighing only 4.92 pounds, it is manageable for installation, making it an excellent choice for fleet maintenance. Choose Source One Parts Center for your Bendix OEM parts, where we provide the best selection for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.66 IN
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Height
149.1 mm (5.87 in)
Differential Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-24 UNF-3A Stud (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Mounting Nuts / Washers Included
Yes
Weight
4.92 lb
