K036436

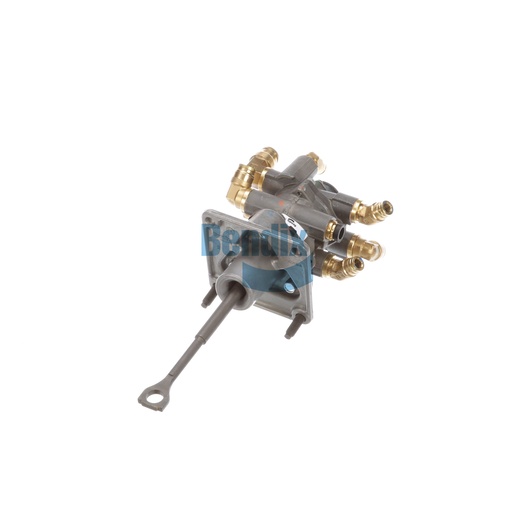

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is essential for efficient operation in your truck’s braking system. This valve facilitates the control of air pressure to the brakes, allowing for smooth and responsive braking performance. Designed for durability, it can withstand various operating conditions, ensuring reliable performance in demanding environments. With a compact design, it is easy to install and integrates well into existing systems, providing flexibility for maintenance and upgrades. The valve features a robust construction that enhances the overall reliability and safety of your vehicle. When looking for genuine Bendix OEM parts, Source One Parts Center is the best place to find high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Mounting Stud Length
1.11 IN
Delivery (21) Port 2
1/2 PTC
Delivery (21) Port 1
1/2 PTC (90° Elbow)
Delivery (22) Port 1
1/2 PTC (90° Elbow)
Delivery (22) Port 2
1/2 PTC (90° Elbow)
Width
116.8 mm (4.6 in)
Length
174.2 mm (6.86 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Supply (11) Port 2
3/8 PTC (45° Elbow)
Supply (12) Port 1
3/8 PTC (45° Elbow)
Height
382.0 mm (15.04 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Supply (11) Port 1
5/8 PTC (90° Elbow)
Supply (12) Port 2
5/8 PTC (90° Elbow)
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Nuts / Washers Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Pedal Style
Push Rod
Graduation Spring Style
Rubber Spring
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Mounting (Vehicle)
Ø .45 (2x), M10 x 1.5-6g Stud (2x)
Weight
6.09 lb
