$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

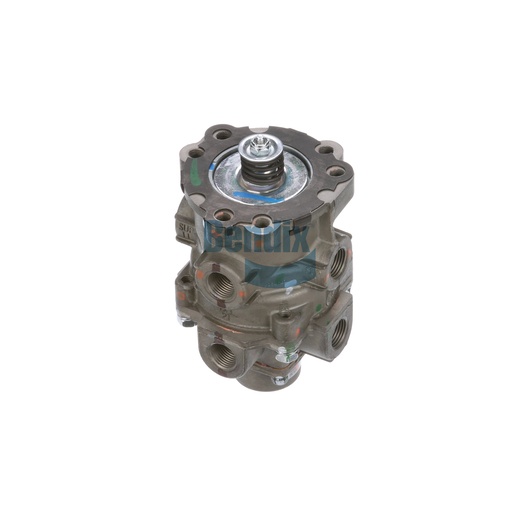

Upgrade your vehicle's braking control with the Bendix Foot Brake Valve, designed for precise operation in heavy-duty applications. This valve is manufactured in Mexico and adheres to strict industry standards, ensuring reliability and performance in demanding conditions. With features such as multiple NPT ports for flexible installation, this valve is engineered to provide smooth and responsive braking, essential for the safe operation of commercial vehicles. Its robust construction ensures durability and longevity, reducing the need for frequent replacements. When you opt for genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing high-quality components that enhance the performance and safety of your trucks.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Height
149.1 mm (5.87 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Differential Pressure
5.5 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.16 lb
