101231N

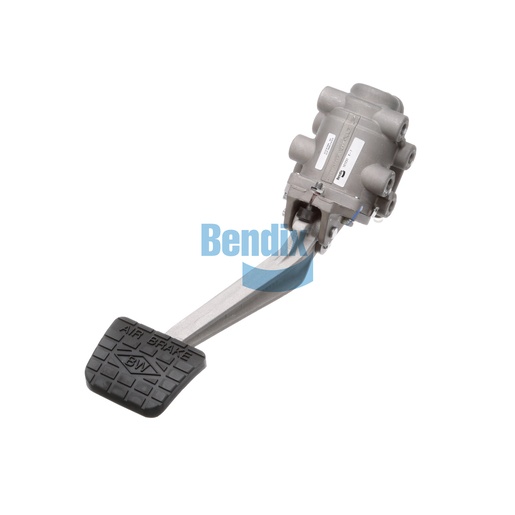

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an integral part of any air brake system, designed to provide reliable control over the braking function in commercial vehicles. With a sleek and durable design, this valve features a suspended pedal style that offers exceptional responsiveness, allowing drivers to apply brakes with precision. Its robust construction ensures it can withstand extreme conditions, with a maximum operating temperature of 200°F and a minimum of -40°F. The valve is designed with multiple ports to accommodate various configurations, making it versatile for different vehicle setups. For authentic Bendix OEM parts, Source One Parts Center is your go-to source, ensuring that your vehicle's braking system operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.56 IN
Total Pedal Travel
17°
Pedal Offset
2.00 IN (Left)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.04 lb
