$599.95
$719.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

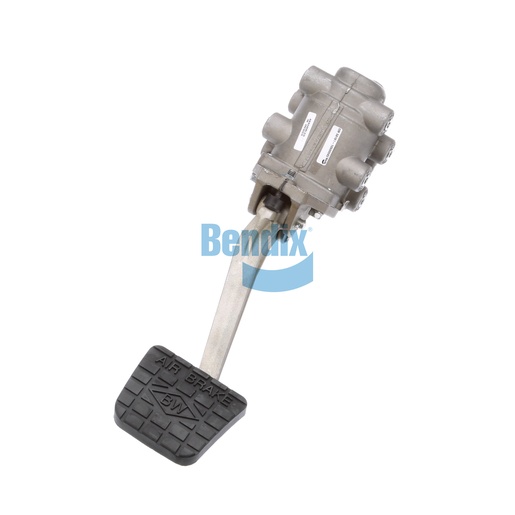

The Foot Brake Valve from Bendix is an essential part of your commercial vehicle's braking system, allowing for precise control and effective braking. Designed with advanced engineering, this valve ensures that air pressure is distributed accurately, providing a smooth and responsive brake pedal feel. Its construction meets stringent quality standards, making it a reliable choice for fleet operators and independent drivers alike. The easy installation process allows for quick replacements, minimizing downtime and keeping your vehicle on the road. This component is critical for maintaining compliance with safety regulations while ensuring optimal brake performance. Source One Parts Center is your trusted partner in sourcing genuine Bendix OEM parts, ensuring you have access to the highest quality components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.88 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT (Plugged)
Delivery (21) Port 2
1/4-18 NPT (Plugged)
Delivery (22) Port 1
1/4-18 NPT (Plugged)
Delivery (22) Port 2
1/4-18 NPT (Plugged)
Supply (11) Port 1
1/4-18 NPT (Plugged)
Supply (11) Port 2
1/4-18 NPT (Plugged)
Supply (12) Port 1
1/4-18 NPT (Plugged)
Supply (12) Port 2
1/4-18 NPT (Plugged)
Supply (12) Port 4
1/8-27 NPT (Plugged)
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.52 IN
Total Pedal Travel
17°
Pedal Offset
2.00 IN (Right)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.28 lb
