103711N

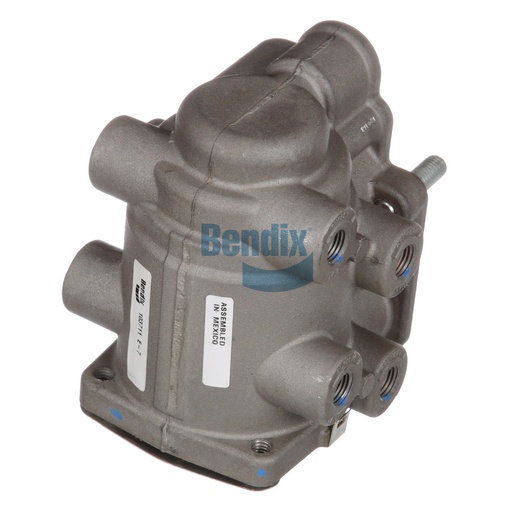

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a critical component designed to provide precise control over your vehicle's air brake system. This valve allows for smooth and responsive braking, essential for maintaining safety in heavy-duty applications. Engineered for durability, it withstands the rigors of daily use and is built to operate effectively under high-pressure conditions. Its intuitive design ensures that drivers can easily engage the brakes, improving overall vehicle control. Regular maintenance of the foot brake valve is vital for preventing potential brake failures and ensuring optimal performance. By installing this high-quality valve, you contribute to the overall safety and reliability of your vehicle. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you get the quality and performance needed for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.88 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Width
110.7 mm (4.36 in)
Length
125.2 mm (4.93 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.79 lb
