$799.95
$959.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

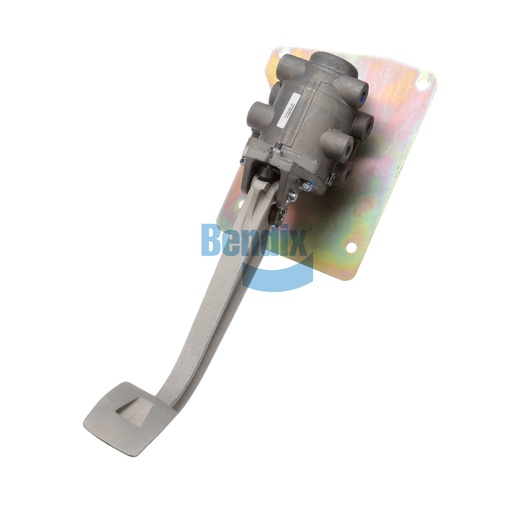

The foot brake valve is an essential part of the braking system in commercial vehicles, providing operators with reliable control over braking performance. This valve is designed to optimize the interaction between the driver's foot pedal and the air brake system, ensuring smooth and effective stopping power. With a sturdy construction and a total pedal travel of 17 degrees, it allows for precise modulation of braking force, enhancing driver comfort and safety. The pedal is made from cast aluminum for durability, and the unit features a side/rear port configuration that facilitates easy installation. This foot brake valve operates efficiently across a wide temperature range, from -40°F to 200°F, making it suitable for a variety of environments and conditions. As a trusted supplier of genuine Bendix OEM parts, Source One Parts Center offers the highest quality foot brake valves to ensure the safety and performance of your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pedal Offset
.59 IN (Right)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Pedal Length (from Pivot)
13.07 IN
Pedal Length (Overall)
13.48 IN
Total Pedal Travel
17°
Width
184.2 mm (7.25 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Initial Pedal Angle
35°
Length
370.1 mm (14.57 in)
Height
454.7 mm (17.9 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Delivery (21) Port 1
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Pedal Pad Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 2
Open Port
Delivery (21) Port 3
Open Port
Delivery (22) Port 1
Open Port
Delivery (22) Port 2
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Supply (12) Port 4
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Manifold Included
Yes
Mounting Plate Included
Yes
Pedal Included
Yes
Mounting (Vehicle)
Ø .420 IN (4x)
Weight
9.98 lb
