$529.95
$635.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

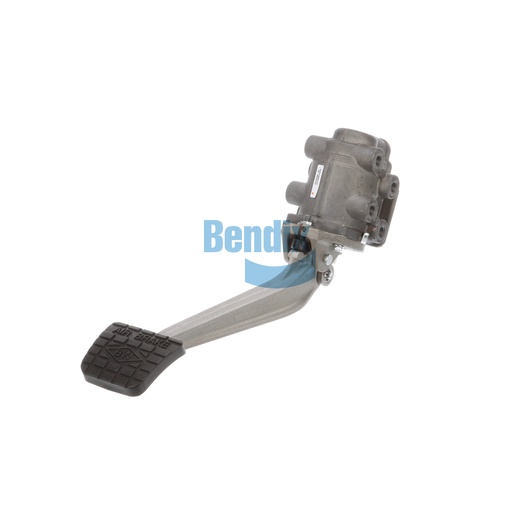

The Bendix Foot Brake Valve is a critical component for ensuring effective brake operation in commercial vehicles. Designed for durability and reliability, this valve features a suspended pedal style that allows for smooth operation, enhancing the overall braking experience. With a net weight of 3.0 kg, it is engineered to withstand the rigors of heavy-duty use while providing precise control over braking pressure. The valve's robust construction ensures it functions efficiently in various environmental conditions, making it a trusted choice for fleet operators. For high-quality parts that ensure your vehicle's performance and safety, Source One Parts Center is your go-to destination for genuine Bendix OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.52 IN
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Pedal Offset
3.25 IN (Left)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
52°
Harmonized System (HS) Code
848120,848190
Pedal Material
Cast Aluminum
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Rubber Boot Included
No
Waterproof
No
Plunger Material
Plastic
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.65 lb
