284760N

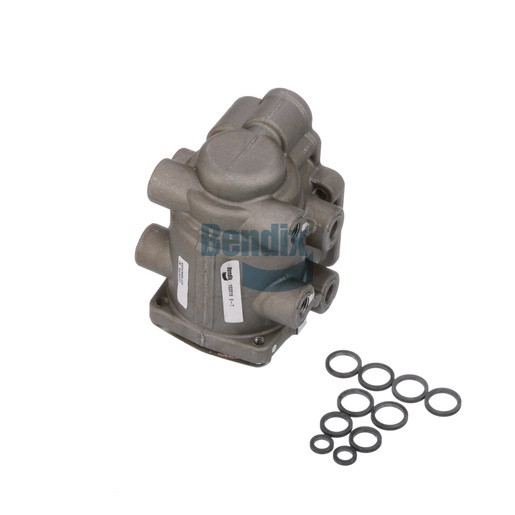

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is designed to provide precise control of your truck's braking system, ensuring safety and efficiency in heavy-duty applications. Engineered for durability, this valve is built to withstand the rigors of the road, offering reliable performance even under extreme conditions. Its innovative design allows for smoother operation and quicker response times, which is crucial for maintaining control during sudden stops. Easy to install and compatible with various truck models, this valve is an essential upgrade for any fleet looking to enhance their braking performance. Choose the Bendix Foot Brake Valve to ensure your vehicles are equipped with the best. Source One Parts Center is your go-to destination for sourcing genuine Bendix OEM parts to maintain your truck's reliability and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.8 lb
