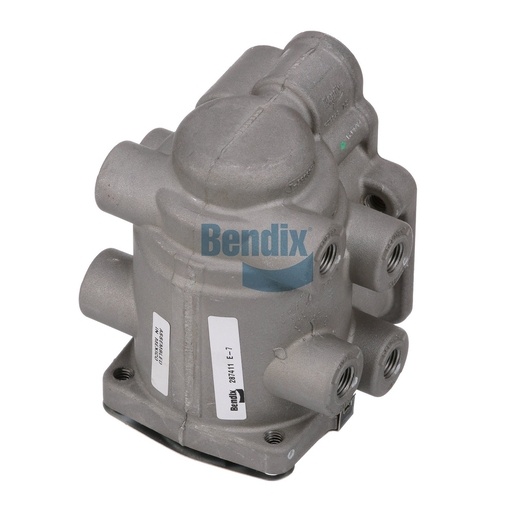

287411N
Foot Brake Valve
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Foot Brake Valve is essential for controlling the braking system of your commercial vehicle, allowing for precise and responsive braking action. This valve is designed to enhance safety by providing efficient pressure management, ensuring immediate engagement and release of the brakes when needed. Constructed with high-quality materials, this valve operates effectively in extreme temperatures, from -40°F to 200°F, making it reliable in diverse environments. Its user-friendly design features a robust actuation mechanism that allows for smooth operation, thus enhancing driver comfort and control. The valve is also straightforward to install, making it an excellent choice for maintenance and repair tasks. By integrating seamlessly into your braking system, it ensures the highest level of performance and safety. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to purchase, offering reliable components that keep your commercial vehicle running smoothly.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.4 lb
