DESCRIPTION

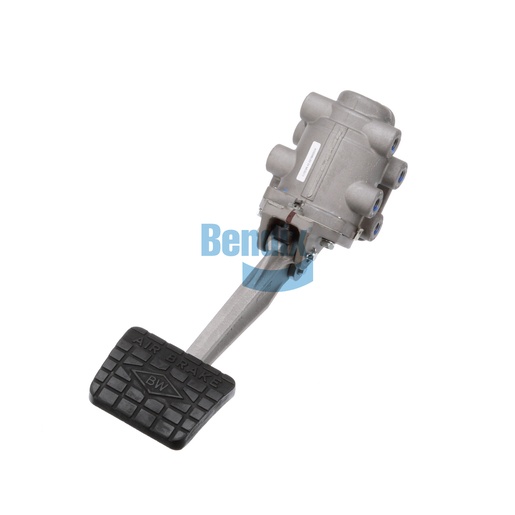

The Foot Brake Valve from Bendix is essential for any commercial truck looking to maintain optimal braking performance. This high-quality valve is designed to provide reliable operation under various conditions, ensuring that your vehicle's brakes engage smoothly and effectively. With its rugged construction, featuring a cast aluminum pedal and steel plunger, it withstands the wear and tear of heavy-duty use. The valve supports a 360° view, allowing for easy installation and adjustment in tight spaces. It operates efficiently within a wide temperature range, from -40°F to 200°F, making it suitable for diverse climates. Additionally, its compliance with FMVSS 121 regulations ensures that safety standards are met. When you choose this Foot Brake Valve, you're investing in a component that enhances your vehicle's braking response, thereby improving overall safety and performance. For all your Bendix OEM parts, Source One Parts Center stands out as the premier destination, offering genuine components that you can trust for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Pedal Length (Overall)
11.52 IN
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Initial Pedal Angle
48°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Length (from Pivot)
9.69 IN
Pedal Material
Cast Aluminum
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Rubber Boot Included
No
Waterproof
No
Pedal Offset
No Offset
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.68 lb
