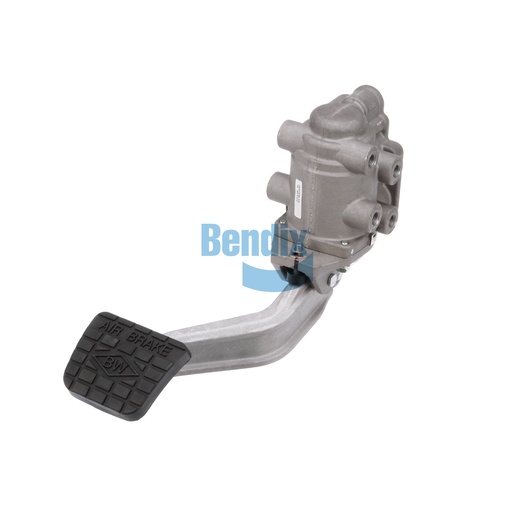

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve by Bendix is an essential part of your vehicle's braking system, designed to provide responsive and reliable braking action. This valve features a suspended pedal style for ease of use, allowing drivers to operate the brakes smoothly and effectively. With a maximum operating temperature of 200°F and a robust design, it is built to withstand the rigors of heavy-duty applications. The valve's multiple ports facilitate easy installation and integration into your existing brake system, making it a practical choice for commercial vehicles. Weighing 3.2 kg, it combines strength with functionality, ensuring that your braking system remains operational and efficient. For quality assurance and genuine Bendix OEM parts, Source One Parts Center is your trusted partner, helping you keep your fleet safe and reliable.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Pedal Length (Overall)
10.10 IN
Total Pedal Travel
17°
Width
189.0 mm (7.44 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
244.9 mm (9.64 in)
Differential Pressure
3.0 PSI
Pedal Offset
3.25 IN (Left)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Length
314.5 mm (12.38 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.60 IN
Harmonized System (HS) Code
848120
Initial Pedal Angle
84°
Pedal Material
Cast Aluminum
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Rubber Boot Included
No
Waterproof
No
Plunger Material
Plastic
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.99 lb
