803158

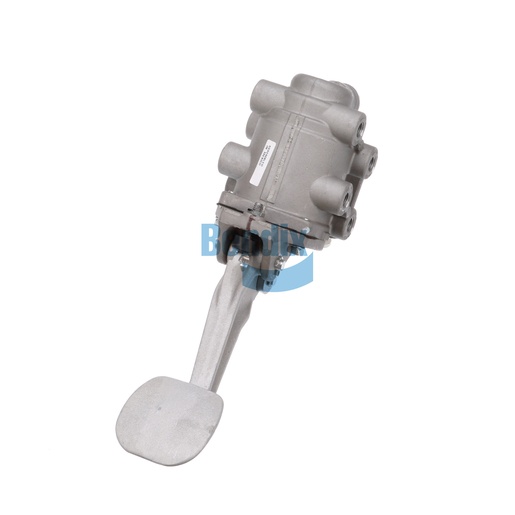

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a crucial part of your vehicle's braking system, providing optimal control over air pressure for smooth and efficient braking. Designed for heavy-duty applications, this valve features robust construction that ensures it can withstand the rigors of commercial use. With a maximum operating temperature of 200°F and a minimum of -40°F, it operates reliably in diverse conditions. The valve is lightweight at just 3.0 kg, facilitating easy installation and maintenance. Its design meets stringent OEM specifications, ensuring compatibility with various vehicle models. Source One Parts Center stands out as your best source for genuine Bendix OEM parts, guaranteeing top-quality components that enhance the safety and efficiency of your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pedal Offset
.88 IN (Right)
Mounting Stud Length
0.75 IN
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Delivery (21) Port 3
1/2-14 NPT (Plugged)
Delivery (22) Port 3
1/2-14 NPT (Plugged)
Supply (11) Port 3
1/2-14 NPT (Plugged)
Supply (12) Port 3
1/2-14 NPT (Plugged)
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT (Plugged)
Width
113.8 mm (4.48 in)
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Length
272.3 mm (10.72 in)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-24 UNC-2A Stud (3x)
Height
308.6 mm (12.15 in)
Initial Pedal Angle
49°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.56 IN
Harmonized System (HS) Code
848120
Pedal Length (Overall)
9.70 IN
Pedal Material
Cast Aluminum
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Pedal Pad Included
No
Rubber Boot Included
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Waterproof
Yes
Weight
6.63 lb
