K037840

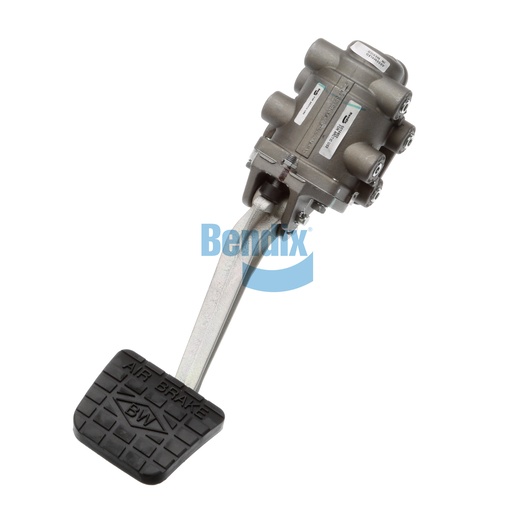

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve from Bendix is a critical component for the braking system of commercial vehicles, ensuring reliable operation when it matters most. Designed for foot-operated applications, this valve features a robust construction that withstands the demands of heavy-duty use. With precise engineering, it allows for smooth and efficient braking, enhancing vehicle control and safety during operation. The valve's design facilitates easy installation and maintenance, making it an ideal choice for fleet operators looking to minimize downtime. Trust Source One Parts Center to provide you with genuine Bendix OEM parts that deliver quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting Stud Length
0.88 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT (Plugged)
Delivery (21) Port 2
1/4-18 NPT (Plugged)
Delivery (22) Port 1
1/4-18 NPT (Plugged)
Delivery (22) Port 2
1/4-18 NPT (Plugged)
Supply (11) Port 1
1/4-18 NPT (Plugged)
Supply (11) Port 2
1/4-18 NPT (Plugged)
Supply (12) Port 1
1/4-18 NPT (Plugged)
Supply (12) Port 2
1/4-18 NPT (Plugged)
Supply (12) Port 4
1/8-27 NPT (Plugged)
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.52 IN
Maximum Operating Temperature
160 °F (71 °C)
Total Pedal Travel
17°
Pedal Offset
2.00 IN (Right)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
7.05 lb
