OR284760

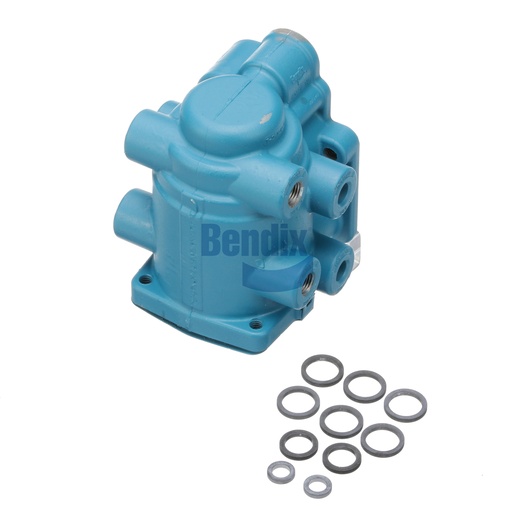

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is a critical component for foot-operated air brake systems in commercial vehicles. Designed for reliability, this valve features a robust construction that can withstand harsh conditions and extreme temperatures. With multiple supply and delivery ports, it ensures effective air distribution, crucial for maintaining optimal braking performance. The valve operates efficiently with a minimum crack pressure of 3.0 PSI, making it suitable for various applications. Its straightforward installation process minimizes downtime, allowing for quick replacements when necessary. Ensure your braking system operates at its best with the Bendix Coreless Valve, a choice that reflects quality and performance. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, providing the reliability your fleet deserves.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.64 lb
