DESCRIPTION

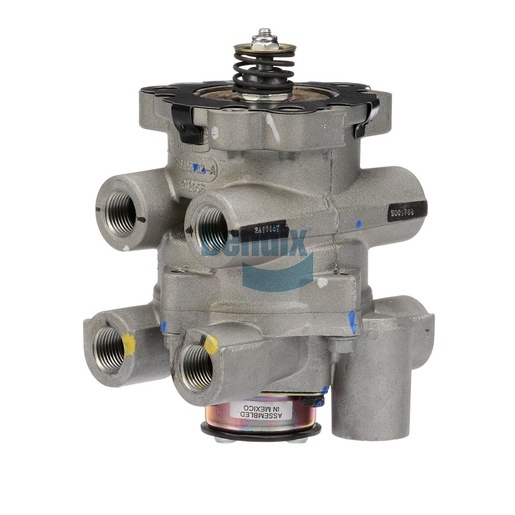

The Foot Brake Valve from Bendix is an essential component that ensures effective braking performance in your commercial vehicle. This valve is specifically designed for foot-operated braking systems, allowing for precise control over brake application. With a durable construction that can withstand extreme temperatures, this valve is built for reliability, ensuring that your braking system operates efficiently under all conditions. It features a parallel port configuration, making installation straightforward and compatible with various systems. By investing in this high-quality foot brake valve, you are enhancing the safety and responsiveness of your vehicle's braking system, which is critical for the demands of commercial driving. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your go-to destination, ensuring you receive parts that meet the highest standards of quality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Length
101.6 mm (4.0 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Auxiliary Supply Port
3/8-18 NPT
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.58 lb
