$219.95
$263.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

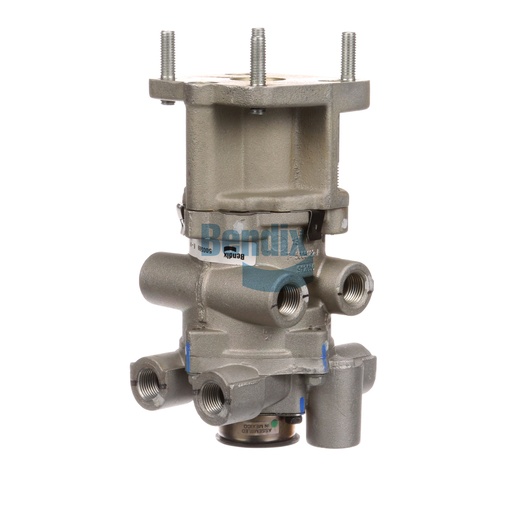

The Bendix Foot Brake Valve is an essential component for the operation of your vehicle's braking system, providing reliable control over brake application. This valve is designed for foot operation, enabling drivers to engage the brakes quickly and efficiently. Weighing 2.0 kg, it is constructed from high-quality materials that ensure durability and longevity, even in demanding environments. The valve features a user-friendly design for easy installation and integration into existing systems, making it a practical choice for maintenance professionals. Its precise engineering allows for smooth operation, which is crucial for maintaining safety and performance on the road. By investing in the Bendix Foot Brake Valve, you enhance the responsiveness of your braking system, contributing to safer driving conditions. Source One Parts Center is the best choice for genuine Bendix OEM parts, ensuring you receive reliable components that meet the needs of commercial trucking.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.88 IN
VMRS
013-010-051: Application Valve - Dual
Length
101.6 mm (4.0 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
201.2 mm (7.92 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Port Configuration
Axial / Perpendicular
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Mounting (Valve Body)
M8 X 1.25-6g Stud (4x)
Country of Origin
Mexico
BVA-85 Included
No
Mounting Nuts / Washers Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Plunger Material
Steel
Weight
4.39 lb
