$194.95
$233.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

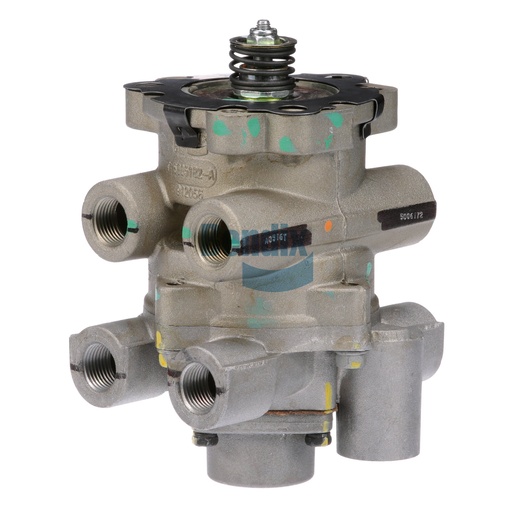

The Foot Brake Valve from Bendix is an essential component that plays a critical role in the operation of your commercial vehicle's braking system. Designed for foot-operated control, this valve ensures precise modulation of air pressure for effective braking performance. With a robust construction, it is built to withstand the stresses of heavy-duty use, providing reliable service over time. This valve features multiple ports for easy integration into various braking setups, making it versatile for different commercial vehicles. The Foot Brake Valve operates efficiently across a wide temperature range, ensuring dependable performance in various weather conditions. By enabling smooth and controlled braking, this component enhances the overall safety of your vehicle. For those seeking the highest quality in braking components, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring your commercial vehicles are equipped with the best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Length
101.6 mm (4.0 in)
Height
149.4 mm (5.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Auxiliary Supply Port
3/8-18 NPT
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120,848180
Width
91.4 mm (3.6 in)
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.67 lb
