$239.95
$287.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

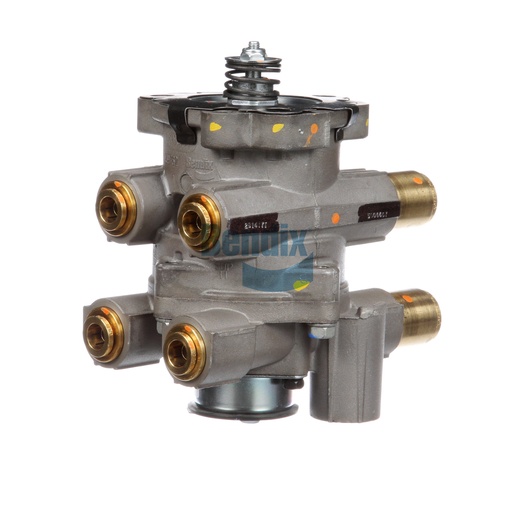

The Foot Brake Valve is a vital component in a truck's braking system, enabling effective control of the vehicle's stopping power. This valve allows for smooth and responsive braking by regulating air pressure within the brake system, which is crucial for maintaining control during heavy loads and challenging driving conditions. Designed with advanced features for reliability and performance, the Foot Brake Valve is engineered to meet the rigorous demands of commercial vehicles, ensuring safety and efficiency on the road. Its robust construction ensures longevity, and its straightforward installation process means that mechanics can easily replace it when necessary. For fleet operators and truck owners seeking dependable and genuine Bendix OEM parts, Source One Parts Center is the ideal destination, offering a wide selection of high-quality components for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (22) Port 2
1/2 PTC
Length
110.5 mm (4.35 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8 PTC
Delivery (21) Port 2
3/8 PTC
Delivery (22) Port 1
3/8 PTC
Supply (11) Port 1
3/8 PTC
Supply (12) Port 1
3/8 PTC
Auxiliary Supply Port
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Supply (11) Port 2
5/8 PTC
Supply (12) Port 2
5/8 PTC
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
3.09 lb
