$259.95
$311.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

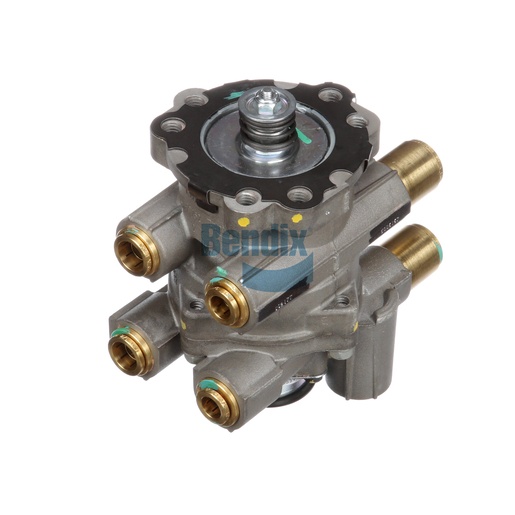

The Bendix Foot Brake Valve is a crucial component for the braking system of heavy-duty vehicles, offering enhanced control and safety. This valve is expertly designed for foot-operated applications, ensuring precise modulation of brake pressure. With a net weight of just 1.4 kg (3.02 lb), this compact yet robust valve features multiple ports, allowing for versatile installation options. It operates efficiently across a wide temperature range, from -40°F to 200°F, ensuring reliability in diverse conditions. The valve's design incorporates a dust shield for the exhaust port, providing an additional layer of protection against contaminants. As a result, you're assured of consistent performance and durability. For quality assurance, Source One Parts Center stands out as the ideal source for authentic Bendix OEM parts, making your purchasing experience seamless and trustworthy.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 1
1/2 PTC
Delivery (22) Port 1
1/2 PTC
Delivery (22) Port 2
1/2 PTC
Length
110.5 mm (4.35 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 2
3/8 PTC
Supply (11) Port 1
3/8 PTC
Supply (12) Port 1
3/8 PTC
Auxiliary Supply Port
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Supply (11) Port 2
5/8 PTC
Supply (12) Port 2
5/8 PTC
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
3.02 lb
