801344

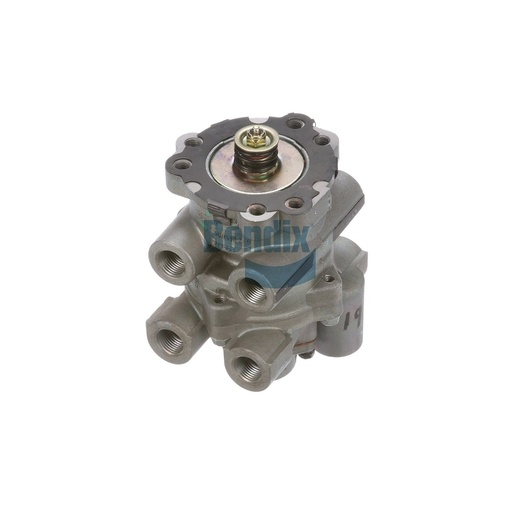

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a critical component for ensuring the safe operation of your truck's air brake system. This valve is designed for foot-operated control, allowing for precise modulation of braking power. With a durable construction that can withstand high pressures, it is built to perform reliably under the demanding conditions of heavy-duty trucking. The valve features multiple ports for easy installation and maintenance, enhancing the overall efficiency of the braking system. Its compact design ensures that it fits seamlessly within your vehicle's layout, contributing to a cleaner and more organized installation. By selecting the Bendix Foot Brake Valve from Source One Parts Center, you are choosing a product that meets OEM specifications, ensuring safety and reliability on every journey. Source One Parts Center is your trusted source for genuine Bendix OEM parts, delivering unmatched quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Length
101.6 mm (4.0 in)
Height
149.4 mm (5.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Auxiliary Supply Port
Closed Port
Regulatory Compliance
ECE Reg 13
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.75 lb
