$234.95
$281.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

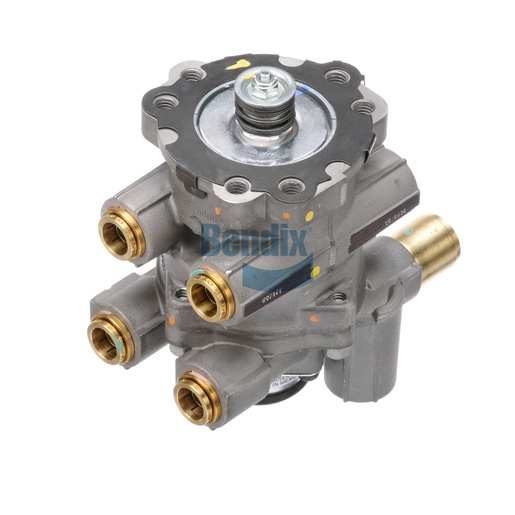

The Foot Brake Valve is a vital component that enhances the braking control in commercial vehicles, providing drivers with a reliable and responsive braking experience. This valve is designed with multiple ports to accommodate various configurations, ensuring compatibility with a wide range of systems. Its robust construction guarantees durability, making it suitable for the harsh environments often encountered in commercial trucking operations. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve maintains optimal performance in extreme conditions. The thoughtful design features, such as a dust shield and precise port configurations, ensure that the valve operates smoothly and effectively, contributing to the overall safety of the vehicle. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, delivering quality products that professionals in the industry trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 1
1/2 PTC
Delivery (22) Port 1
1/2 PTC
Supply (11) Port 1
1/2 PTC
Supply (12) Port 1
1/2 PTC
Length
110.5 mm (4.35 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 2
3/8 PTC
Delivery (22) Port 2
3/8 PTC
Auxiliary Supply Port
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Supply (12) Port 2
5/8 PTC
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.96 lb
