802924

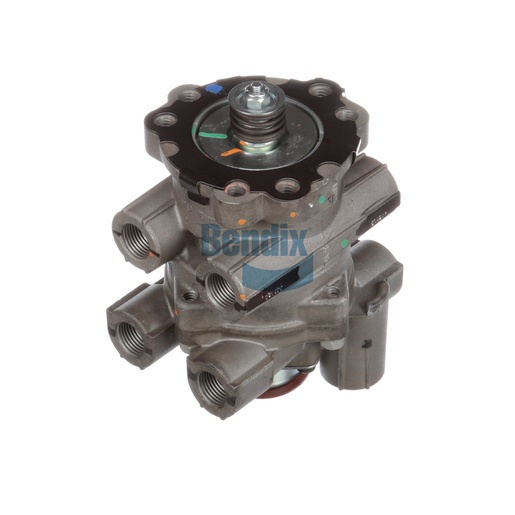

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve from Bendix is a critical component of the air brake system, designed to provide responsive and reliable braking control in commercial vehicles. With its robust construction and precise engineering, this valve ensures smooth operation and immediate response, significantly enhancing driver safety. The valve's design includes dust shields and a port configuration that makes it easy to install and maintain. Operating efficiently in various temperature ranges, it is essential for ensuring that air brakes function correctly under demanding conditions. For the best selection of Bendix parts, including the Foot Brake Valve, turn to Source One Parts Center, where you'll find genuine OEM products tailored for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Length
101.6 mm (4.0 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
221 °F (105 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.3 lb
