278523N

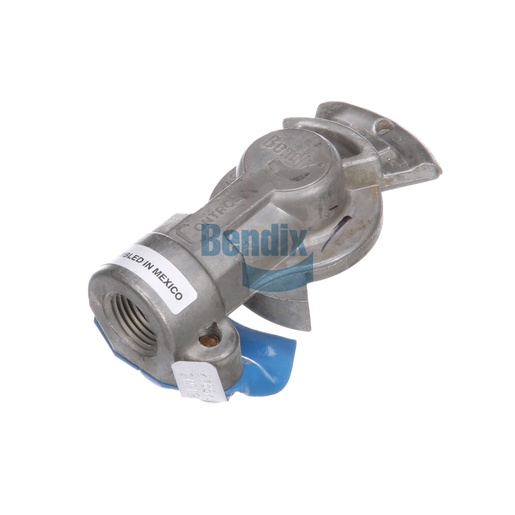

Coupling Head
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coupling Head is a vital component within the air brake system of commercial vehicles, designed to ensure secure and efficient connections between air lines. Constructed to meet industry standards, this coupling head facilitates the quick and reliable transfer of compressed air, which is essential for optimal brake operation. Its robust design is engineered to withstand harsh conditions, operating effectively in temperatures from -40°F to 158°F, ensuring durability and reliability for years to come. The lightweight construction simplifies installation and maintenance, making it a preferred choice for fleet operations. This coupling head plays a critical role in enhancing the safety and efficiency of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive quality components that keep your vehicle operating at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.0 mm (2.09 in)
Harmonized System (HS) Code
848120,761699
Identification
Control (Blue)
Filter Screen
No
Locking Feature
No
Industry Standard
SAE J318
Country of Origin
United States
Weight
0.49 lb
