DESCRIPTION

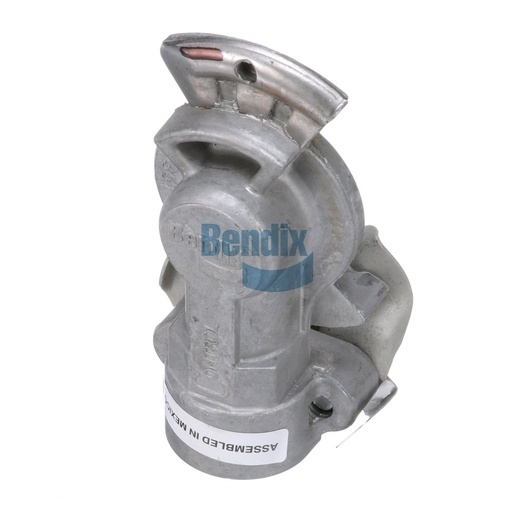

The Coupling Head from Bendix is a vital component designed to enhance the functionality of your vehicle's air brake system. This robust coupler features a locking mechanism that ensures secure connections, minimizing the risk of air leaks and enhancing safety during operation. With a maximum operating temperature of 158 °F and weighing only 0.2 kg, it is built for durability and ease of installation. The coupler's design adheres to industry standards, ensuring compatibility with existing systems. Regular maintenance of the coupling head can significantly improve the efficiency of your air brake system. Source One Parts Center is your best destination for sourcing genuine Bendix OEM parts, providing high-quality solutions tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
730792,848120,761699
Identification
Control
Filter Screen
No
Industry Standard
SAE J318
Country of Origin
United States
Locking Feature
Yes
Weight
0.47 lb
