278851N

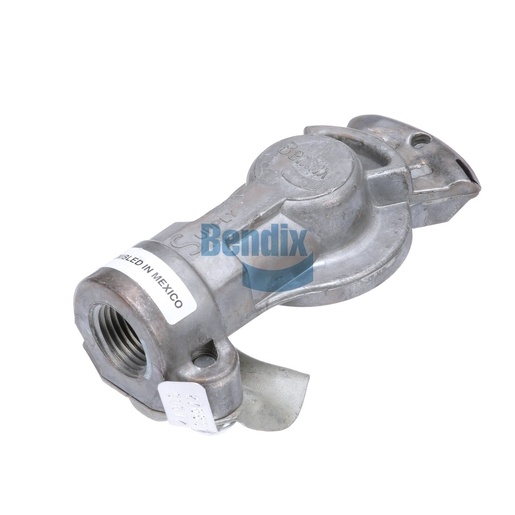

Coupling Head
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$45.95
$55.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coupling Head from Bendix is an essential component designed for reliable air connections in your vehicle's braking system. This sturdy coupling ensures secure and efficient connections between air hoses, facilitating the proper function of your air brakes. Built to meet industry standards, this coupling head is crafted from high-quality materials, providing durability and resistance to wear over time. Its precise design promotes optimal airflow, minimizing the risk of leaks that can compromise braking performance. By ensuring a reliable connection for your air supply, this coupling head enhances the overall safety and efficiency of your vehicle. For the best selection of genuine Bendix parts, including the Coupling Head, choose Source One Parts Center, where quality meets exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
848120,330792,761699
Filter Screen
No
Locking Feature
No
Industry Standard
SAE J318
Identification
Supply
Country of Origin
United States
Weight
0.5 lb
