278852N

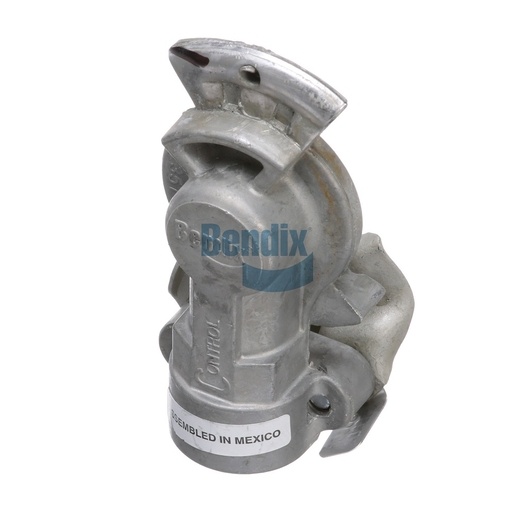

Coupling Head
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coupling Head is a critical component for ensuring safe and effective air brake connections in commercial vehicles. Designed to facilitate secure and leak-proof connections between air lines, this coupling head is built to withstand the rigors of heavy-duty use. Its durable construction ensures long-term reliability, while the locking feature provides added security to prevent accidental disconnections during operation. With a maximum operating temperature of 158°F and a minimum of -40°F, this component is engineered to perform efficiently in various conditions. Weighing only 0.49 lbs, it is easy to install and maintain, making it an essential part of your vehicle's air brake system. For those in search of high-quality components, Source One Parts Center offers genuine Bendix OEM parts, ensuring you receive reliable products that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
730792,848120,761699
Identification
Control
Country of Origin
Mexico
Industry Standard
SAE J318
Filter Screen
Yes
Locking Feature
Yes
Weight
0.49 lb
