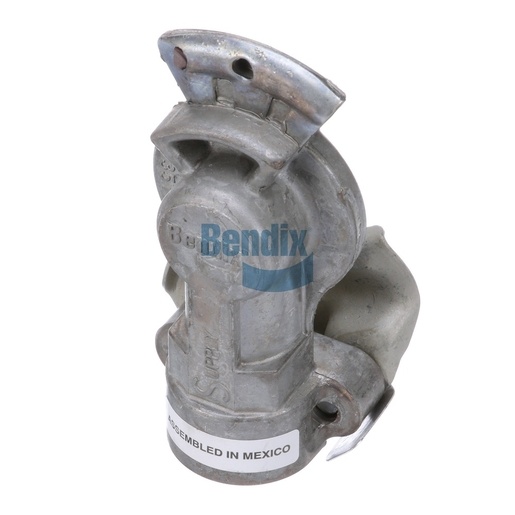

278853N
Coupling Head
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix coupling head serves as a vital link in your air brake system, facilitating a secure and efficient connection between air lines. Designed to meet industry standards, this coupling head features a 1/2-14 NPT port size, ensuring compatibility with various air brake systems. Its robust construction is engineered to withstand harsh operating conditions, providing long-lasting service and reliability. Equipped with a filter screen, it helps to prevent contaminants from entering the air lines, ensuring optimal braking performance. This coupling head is easy to install and maintain, making it an essential component for any commercial vehicle. Source One Parts Center offers genuine Bendix OEM parts, ensuring you receive the quality needed for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
730792,848120,761699
Locking Feature
No
Industry Standard
SAE J318
Identification
Supply
Country of Origin
United States
Filter Screen
Yes
Weight
0.46 lb
