K048613
Coupling Head
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

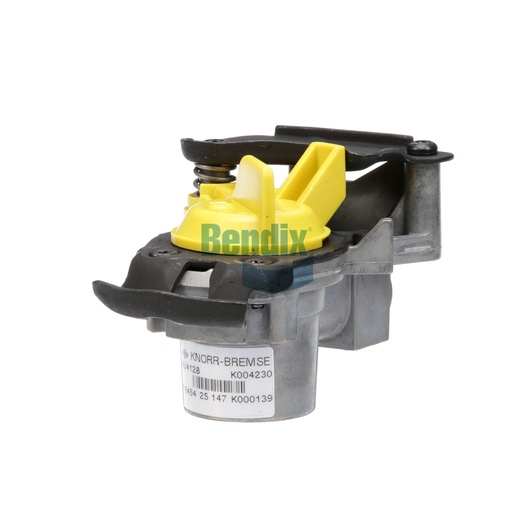

The Bendix coupling head is a vital component in air brake systems, designed to ensure a secure connection between the brake lines of your commercial vehicle. Manufactured with precision, this coupling head features a robust construction that guarantees durability and reliability under high-pressure conditions. It includes a locking feature for added security, ensuring that connections remain intact during operation. The assembly is lightweight, making installation quick and easy. This component meets industry standards, contributing to the overall safety and efficacy of your braking system. Source One Parts Center is the ideal source for genuine Bendix OEM parts, providing you with the assurance of quality necessary for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Width
127.0 mm (5.0 in)
Maximum Operating Temperature
176 °F (80 °C)
Height
65.4 mm (2.57 in)
Harmonized System (HS) Code
848120,761699
Length
95.0 mm (3.74 in)
Identification
Control (Yellow)
Industry Standard
ISO 1728
Country of Origin
India
Port Size
M16 X 1.5
Filter Screen
No
Locking Feature
No
Weight
0.6 lb
