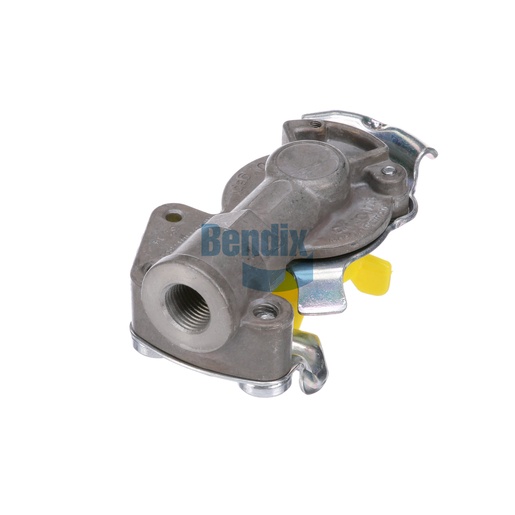

KU1311N
Coupling Head
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coupling Head is a vital component in the air brake system, facilitating a secure connection between vehicles and trailers. Designed for reliable performance, this part ensures efficient air transfer, contributing to the overall effectiveness of your braking system. Its robust construction guarantees durability and resistance to wear, making it suitable for heavy-duty applications. The installation process is straightforward, promoting quick replacements and minimizing downtime. When you shop at Source One Parts Center, you can trust that you are obtaining top-quality Bendix parts that enhance the safety and functionality of your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Length
109.5 mm (4.31 in)
Maximum Operating Temperature
176 °F (80 °C)
Height
47.0 mm (1.85 in)
Width
47.0 mm (1.85 in)
Harmonized System (HS) Code
848120,761699
Identification
Control (Yellow)
Industry Standard
ISO 1728
Country of Origin
Lithuania
Port Size
M16 X 1.5
Filter Screen
No
Locking Feature
No
Weight
0.49 lb
