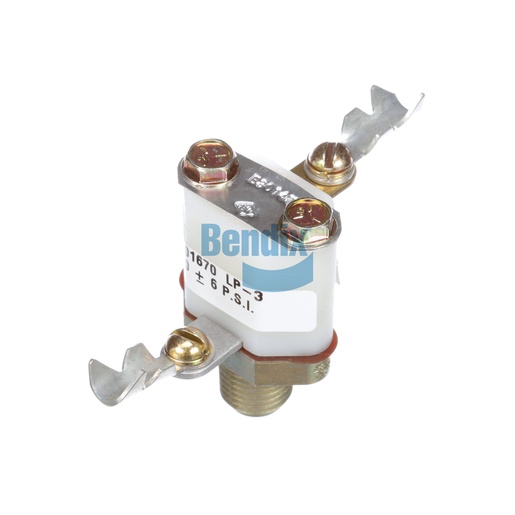

101670N
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure indicator is a vital device for monitoring the air pressure within your vehicle's braking system. Compact and lightweight at 0.1 kg, this indicator is designed for easy installation and precise operation, ensuring that drivers are always informed about the status of the braking system. Its high-quality construction guarantees durability and reliability, making it essential for maintaining safety on the road. Proper monitoring of air pressure is critical for the effective operation of air brakes, and this indicator provides peace of mind for fleet operators. When sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, ensuring that you receive only the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
70 ± 6 PSI
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Weight
0.11 lb
