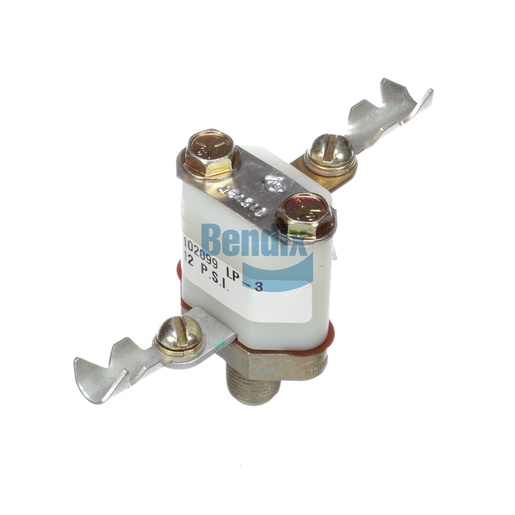

102099N
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator is an essential device in monitoring the performance of your air brake system. Designed to alert drivers to low air pressure levels, this indicator is crucial for maintaining safety on the road. Weighing only 0.1 kg, it features a compact design that makes installation straightforward without compromising on reliability. This indicator is built to operate under a variety of conditions, ensuring that it functions optimally for your vehicle's needs. The device’s ability to provide real-time feedback on air pressure levels helps prevent potential braking failures, making it a vital component for any commercial vehicle. For purchasing genuine Bendix OEM parts, Source One Parts Center offers an unparalleled selection of quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Closing Pressure
12 ± 2 PSI
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Length
76.2 mm (3.0 in)
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Weight
0.11 lb
