103079N

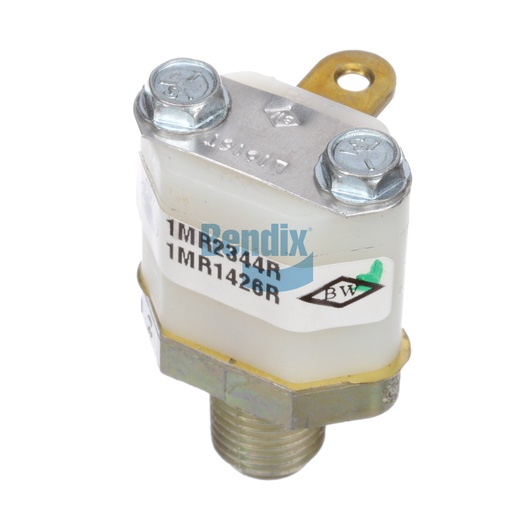

Pressure Indicator
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$49.95
$59.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator from Bendix is a crucial component for any air brake system, providing essential feedback on the system's performance. This device monitors air pressure levels, alerting drivers to any potential issues that could compromise braking efficiency. Manufactured in Mexico, this indicator is built with precision and reliability in mind, ensuring that it withstands the demanding conditions of commercial truck operations. With a compact size and lightweight design, it is easy to install and fits seamlessly into existing systems. The indicator is designed to operate effectively within a wide temperature range, ensuring consistent performance regardless of environmental conditions. By integrating this part into your braking system, you enhance safety and ensure optimal performance. For authentic Bendix OEM parts, Source One Parts Center is the trusted destination for all your commercial vehicle component needs, ensuring you receive quality products that meet industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Terminal 1 Connector
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
30.2 mm (1.19 in)
Width
32.0 mm (1.26 in)
Height
49.3 mm (1.94 in)
Closing Pressure
70 ± 6 PSI
Harmonized System (HS) Code
853650
Country of Origin
Mexico
Terminal Configuration
Single
Weight
0.11 lb
