DESCRIPTION

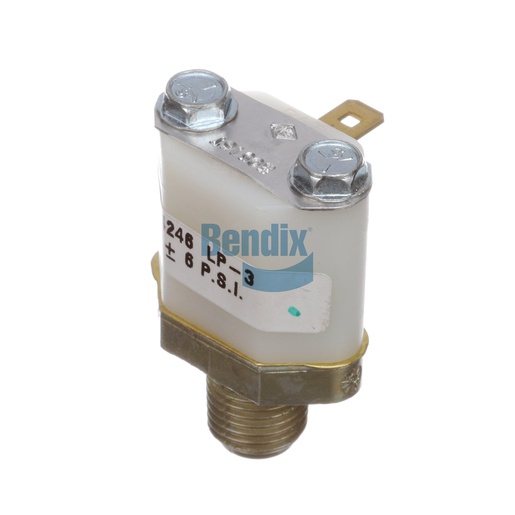

The Pressure Indicator is a vital component in monitoring the air pressure levels within the braking system of commercial vehicles. This device provides real-time feedback on pressure fluctuations, ensuring that any drop below the safe operating level is immediately detected, which is crucial for maintaining optimal brake performance and safety. Designed with precision engineering, the Pressure Indicator is built to withstand harsh operating conditions, ensuring reliability and accuracy. Its easy installation and compatibility with various Bendix systems make it an essential addition for fleet managers aiming to enhance vehicle safety and reduce the risk of brake failure. With this part installed, you can have peace of mind knowing that your braking system is continuously monitored. Source One Parts Center is the premier source for genuine Bendix OEM parts, guaranteeing you receive high-quality components that meet the rigorous demands of commercial vehicle applications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Terminal 1 Connector
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Closing Pressure
66 ± 6 PSI
Harmonized System (HS) Code
902620
Country of Origin
Mexico
Terminal Configuration
Single
Weight
0.11 lb
