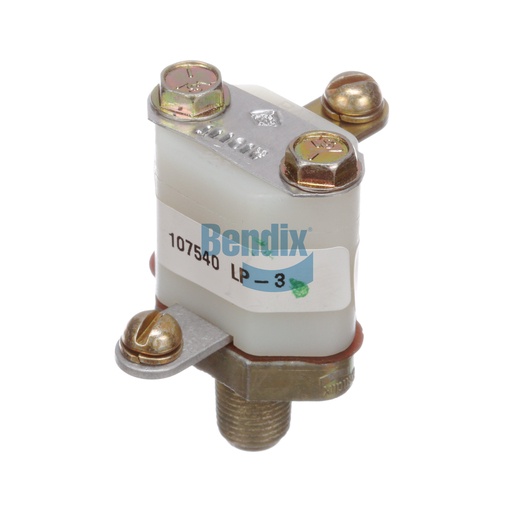

107540N
Pressure Indicator
Bendix
AVAILABLE
6 are currently available
Ships within 11-13 business days
$59.95
$71.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure indicator is an integral part of the air brake system, providing essential feedback on air pressure levels to ensure optimal braking performance. This compact device measures just 32.0 mm wide and 49.3 mm high, making it easy to install in various configurations. With a closing pressure of 66 ± 6 PSI and a current rating of 10 A, it operates effectively under typical conditions, ensuring that drivers are promptly alerted to any pressure changes that could affect vehicle safety. Designed for durability, this pressure indicator can function reliably in temperatures ranging from -40 °F to 185 °F, making it suitable for a wide range of climates. The Bendix pressure indicator is a key component for maintaining safety and compliance in commercial vehicles. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you get high-quality components for your truck.
SPECIFICATIONS
Terminal 1 Connector
#8-32 UNC-3B
Terminal 2 Connector
#8-32 UNC-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/8-27 NPTF (Male)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
32.0 mm (1.26 in)
Length
44.7 mm (1.76 in)
Height
49.3 mm (1.94 in)
Closing Pressure
66 ± 6 PSI
Harmonized System (HS) Code
853650
Terminal Configuration
Double
Country of Origin
Mexico
Weight
0.11 lb
