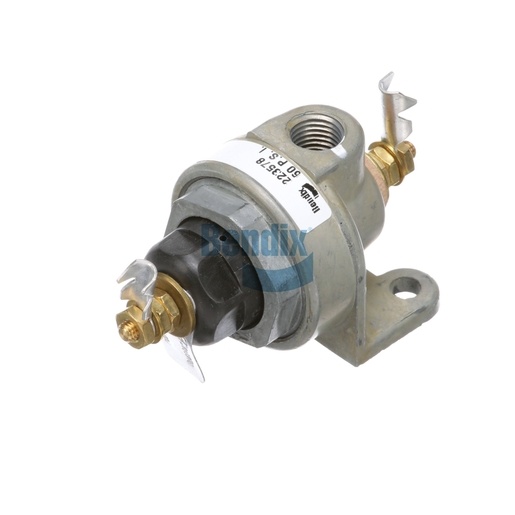

223578N
Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator is a vital component in monitoring the air pressure levels within the brake system, ensuring safety and reliability for commercial vehicles. Designed with precision engineering, this indicator provides accurate readings, helping drivers maintain optimal brake performance and avoid potential issues. It features a durable construction that can withstand harsh operating conditions, making it an essential part of any air brake system. The compact size and easy installation allow for seamless integration into existing setups, enhancing overall system efficiency. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to find high-quality components that ensure your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Female)
Current Rating
10 A
Voltage (Nominal)
12 Volts
Maximum Operating Temperature
185 °F (85 °C)
Width
47.8 mm (1.88 in)
Length
49.3 mm (1.94 in)
Closing Pressure
63 ± 3 PSI
Harmonized System (HS) Code
853650
Height
89.4 mm (3.52 in)
Terminal Configuration
Double
Country of Origin
Mexico
Terminal 1 Connector
SAE Cable Terminal A-1
Terminal 2 Connector
SAE Cable Terminal A-1
Mounting
Ø.281 (2X)
Weight
0.68 lb
