224044

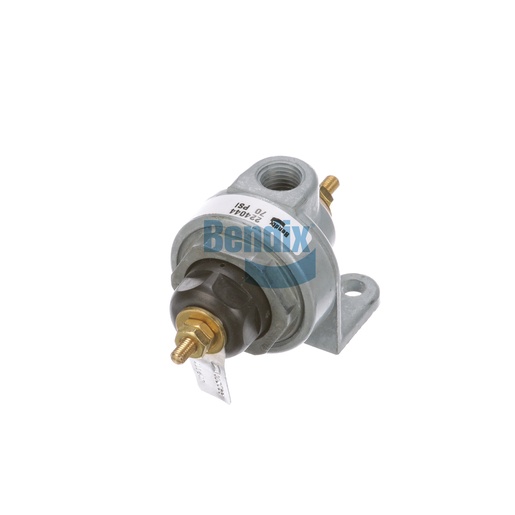

Pressure Indicator
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Indicator is a vital component in monitoring the air pressure levels in your braking system, ensuring safety and reliability on the road. With a weight of just 0.3 kg, this device is compact and designed for easy installation, making it an essential addition to any commercial vehicle's air brake system. Its advanced engineering allows it to provide accurate readings, helping drivers maintain optimal air pressure and preventing potential braking failures. This indicator operates effectively under varying conditions, ensuring consistent performance. For sourcing genuine Bendix OEM parts, Source One Parts Center is the top choice for quality components that enhance your vehicle's safety.
SPECIFICATIONS
Terminal 1 Connector
#10-32 UNF-3B
Terminal 2 Connector
#10-32 UNF-3B
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-194: Switch - Low Air Pressure
Supply Port
1/4-18 NPTF (Female)
Voltage (Nominal)
12 Volts
Current Rating
15 A
Maximum Operating Temperature
185 °F (85 °C)
Width
47.8 mm (1.88 in)
Length
49.3 mm (1.94 in)
Closing Pressure
70 ± 6 PSI
Harmonized System (HS) Code
853650
Height
89.4 mm (3.52 in)
Terminal Configuration
Double
Country of Origin
Mexico
Mounting
Ø.281 (2X)
Weight
0.71 lb
