$45.95
$55.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

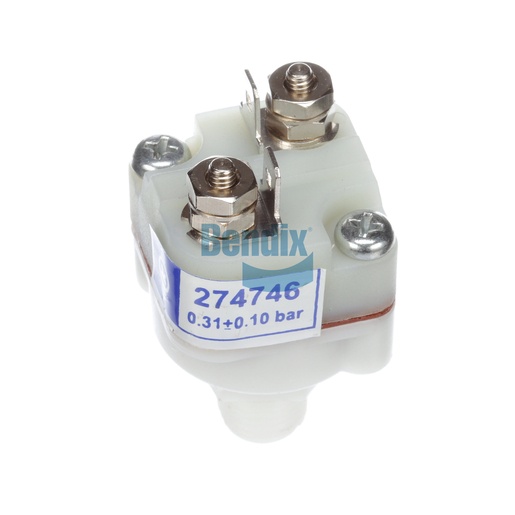

The Bendix Stop Lamp Switch is an essential safety feature that ensures your brake lights operate correctly when the brakes are applied. This switch is designed for reliability, featuring a plastic body material and a current rating suitable for both 12V and 24V systems, making it versatile for various commercial vehicles. Its compact size allows for easy installation, and it operates within a closing pressure range of 3-6 PSI. The Stop Lamp Switch's precise design ensures that your vehicle's brake lights respond promptly, enhancing visibility and safety on the road. This switch is critical for compliance with safety regulations and is built to last, reducing the need for frequent replacements. For genuine Bendix OEM parts, Source One Parts Center is the premier destination, providing high-quality components that ensure your vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
034-002-008: Switch - Stop Lamp
Connector Type
1/4 SAE Type 1A Terminal
Supply Port
1/4-18 NPT
Current Rating
10A (12V) / 5A (24V)
Closing Pressure
3-6 PSI
Length
32.0 mm (1.26 in)
Width
32.0 mm (1.26 in)
Terminal Post Size
5/32-32 B.S.W (2x)
Height
59.0 mm (2.32 in)
Harmonized System (HS) Code
853650
Country of Origin
India
Cautionary Note(s)
Installation torque: 35-50 in-lbs.
Thread Sealant
No Sealant
Body Material
Plastic
Terminal Nut Included
Yes
Weight
0.16 lb
