This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

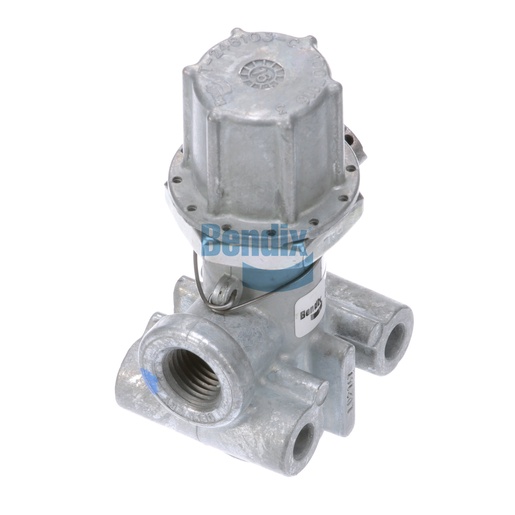

The Bendix Pressure Reducing Valve is essential for maintaining optimal air pressure levels in your vehicle's braking system. This valve helps regulate and lower the air pressure supplied to various components, ensuring they operate efficiently without risk of damage. Engineered with precision, it features a durable construction that can withstand the demanding conditions of commercial truck applications. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is built for reliability in all weather conditions. Its non-adjustable design guarantees consistent performance, making it a crucial part of your air brake system. For authentic Bendix OEM parts, Source One Parts Center is your trusted source, offering exceptional quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Delivery Pressure
85 PSI
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
