$96.95
$116.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

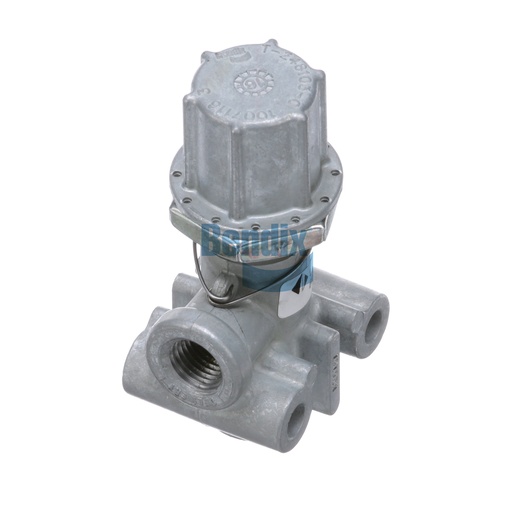

The Pressure Reducing Valve from Bendix is a vital component for managing air pressure in the braking system of commercial vehicles. Weighing just 0.3 kg, this valve is engineered to provide effective pressure regulation, ensuring optimal performance of the brake system. Designed for durability, it can withstand the demanding conditions typical in heavy-duty applications. With precise adjustment capabilities, this valve helps prevent over-pressurization, extending the lifespan of brake components and enhancing safety. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you have access to high-quality components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
60 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
