107492N

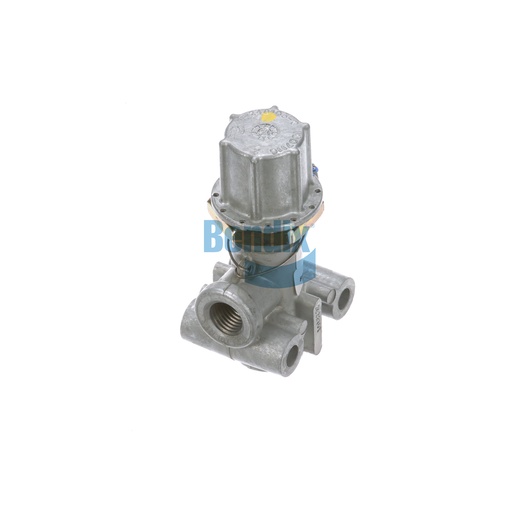

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is an essential part of any air brake system, ensuring that air pressure is maintained at optimal levels for effective braking performance. This valve is designed to prevent over-pressurization, thereby enhancing the safety and efficiency of the braking system. With a compact design and lightweight construction, it is easy to install and integrates seamlessly into existing systems. Designed to operate efficiently across a temperature range of -40 °F to 200 °F, this valve is built to withstand the rigors of commercial use. By choosing the Bendix Pressure Reducing Valve, fleet operators can ensure reliable and consistent braking performance. Source One Parts Center is your go-to source for genuine Bendix OEM parts, guaranteeing quality and expert assistance for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.57 lb
