108709N

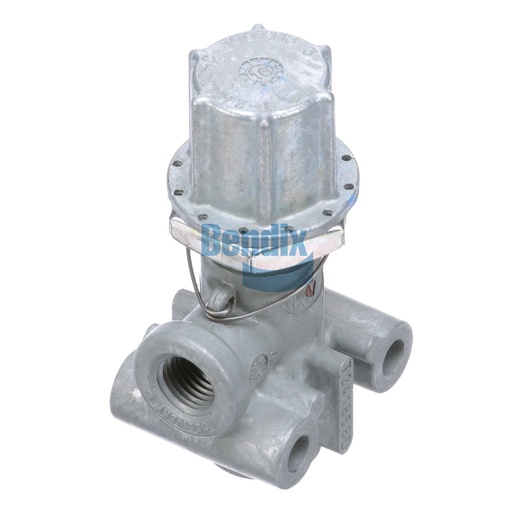

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Reducing Valve is an integral component of the air brake system, designed to manage and reduce air pressure to specific levels for optimal brake performance. This valve ensures that the pressure supplied to different parts of the braking system is consistent, enhancing safety and efficiency during operation. It is built to withstand rigorous conditions, with high durability and temperature tolerance ranging from -40°F to 200°F. The adjustable features allow for precise control, making it suitable for various applications within commercial vehicles. Fleet managers and maintenance professionals will appreciate the reliable performance this valve provides, ensuring that braking systems operate smoothly under all circumstances. For high-quality parts, Source One Parts Center is the best source for genuine Bendix OEM components, providing peace of mind and safety on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Pressure
25 PSI
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable (with Locking Wire)
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.53 lb
