$97.95
$117.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

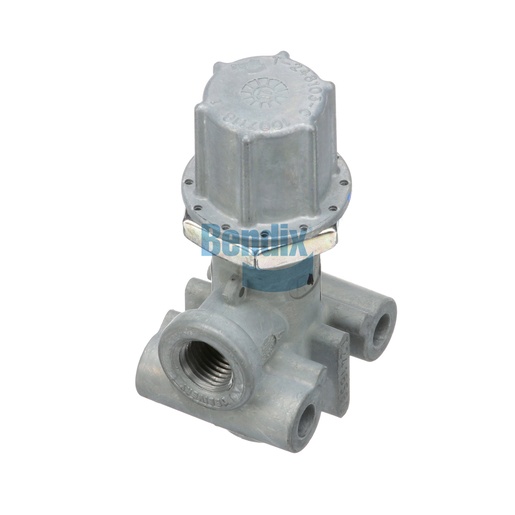

The Pressure Reducing Valve from Bendix is an essential component for controlling air pressure in a vehicle's braking system. This valve ensures that pressure levels are maintained within safe limits, preventing potential system failures and enhancing overall vehicle safety. Designed for durability, it operates effectively under various conditions, maintaining reliability in demanding environments. The compact design and lightweight construction, weighing just 0.3 kg, allow for easy installation and integration into existing systems. For those in search of quality and reliability, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring optimal performance for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
80 PSI
Harmonized System (HS) Code
848110,848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
