277145N

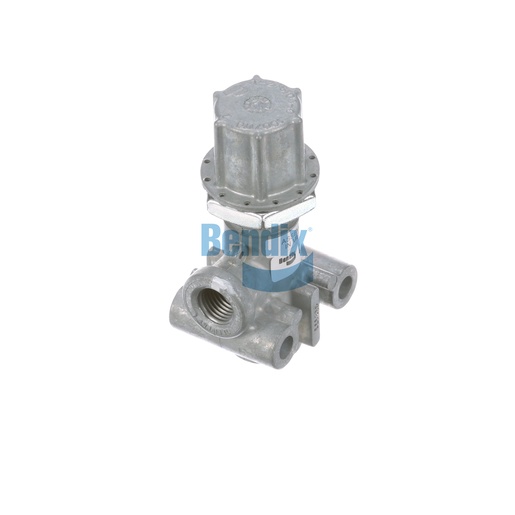

Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix pressure reducing valve is a crucial component in your vehicle's air brake system, designed to maintain optimal pressure levels and enhance braking efficiency. This valve is engineered to perform under extreme conditions, with a maximum operating temperature of 200 °F and a minimum of -40 °F, making it suitable for a variety of environments. Its precise design ensures reliable operation, allowing for safe and effective braking performance. Weighing just 0.5 kg, this valve is easy to install and integrates seamlessly into your existing system. For fleet operators and truck owners, ensuring the reliability of your braking system is paramount. Source One Parts Center is your go-to source for genuine Bendix OEM parts, providing the quality you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
6 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
