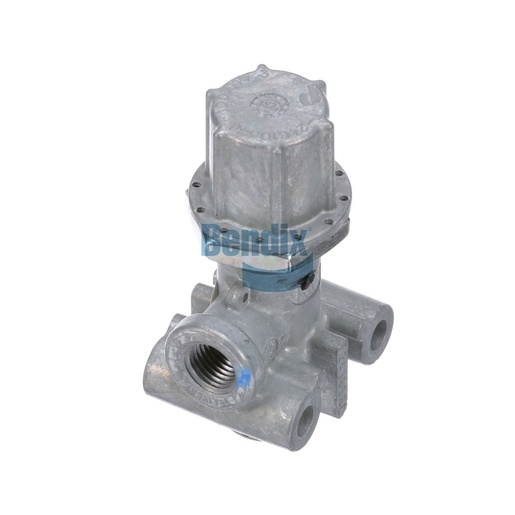

277214N
Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is a critical component in regulating air pressure within brake systems, ensuring safety and performance. Designed to operate efficiently under a wide temperature range, this valve can withstand conditions from -40°F to 200°F. Its lightweight design, weighing only 0.3 kg, makes installation straightforward and hassle-free. By maintaining optimal air pressure, this valve enhances the overall performance of your braking system, contributing to a safer driving experience. For those who prioritize quality, Source One Parts Center is your trusted source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
75 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
