277544N
Pressure Reducing Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

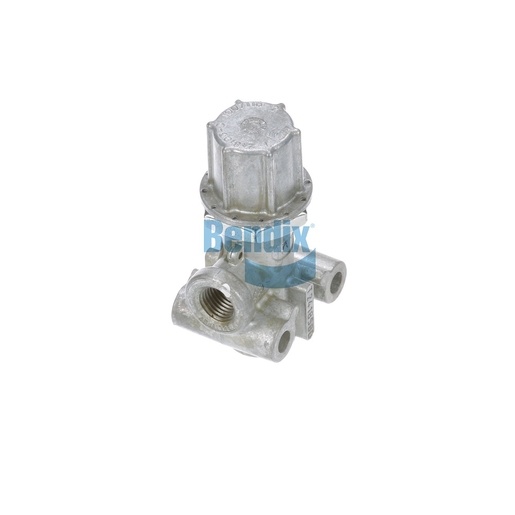

The Pressure Reducing Valve from Bendix is essential for controlling air pressure within your brake system, ensuring consistent and reliable performance. This durable valve is designed for heavy-duty applications, providing optimal air flow regulation to enhance braking effectiveness. Its robust construction allows it to withstand high-stress environments, making it a reliable choice for commercial vehicles. Easy to install, the Pressure Reducing Valve minimizes downtime, keeping your vehicle operational. Trust Source One Parts Center for genuine Bendix OEM parts that deliver quality and performance for your braking systems.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Pressure
110 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
