DESCRIPTION

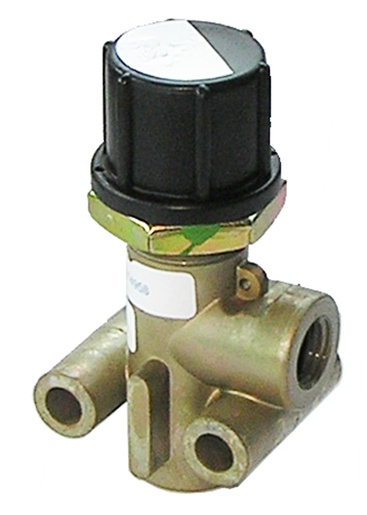

The Pressure Reducing Valve from Bendix is a crucial component for maintaining optimal pressure control in your vehicle's braking system. Manufactured in Mexico, this valve is designed to operate effectively within a temperature range of -40 °F to 200 °F, ensuring reliable performance in various conditions. With a delivery pressure of 65 PSI, this adjustable valve ensures precise control over air pressure, enhancing overall safety and performance during operation. Its compact design and lightweight construction (0.3 kg or 0.57 lb) make installation easy, making it an essential choice for fleet operators. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
36.6 mm (1.44 in)
Length
49.1 mm (1.94 in)
Delivery Pressure
65 PSI
Harmonized System (HS) Code
848120
Height
86.4 mm (3.4 in)
Product Type
Adjustable
Country of Origin
Mexico
Exhaust Port
Vent
Mounting
Ø .28 IN (2x)
Weight
0.57 lb
